Description
What better way to finish off a handle than with our high end super grade ForeCast short fore grips? These grips come with high density cork composite (HDCC) or Dark Burl trim on each end. These fore grips can also be used in a split grip style handle system. The HEFGC16-1 comes with a tenon to fit size 16 reel seat threaded barrels, and the HEFGC17-1 comes with a tenon to fit size 17 reel seat threaded barrels.
Super Grade Cork / HDCC
| PART # | LENGTH (MM/IN) | OD (MM/IN) | ID (MM/IN) | OD FRONT (MM/IN) | OD REAR (MM/IN) |
|---|---|---|---|---|---|

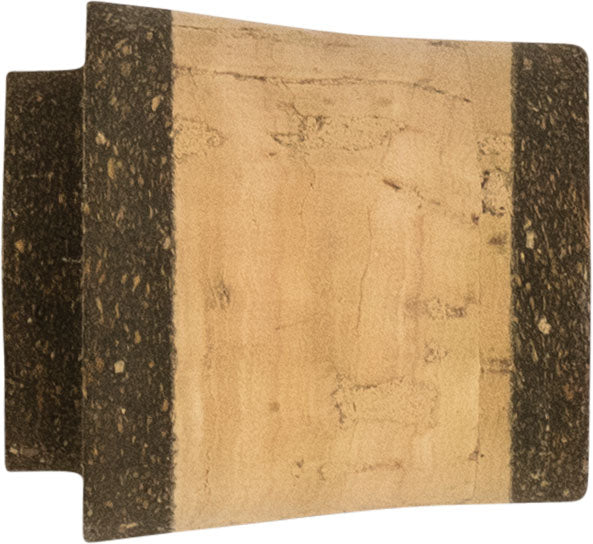

| HEFGC16-1 | 22.225 / 0.875 | 20.828 / 0.820 | 4.7635 / 0.1875 | 16.764 / 0.66 | 20.828 / 0.820 |

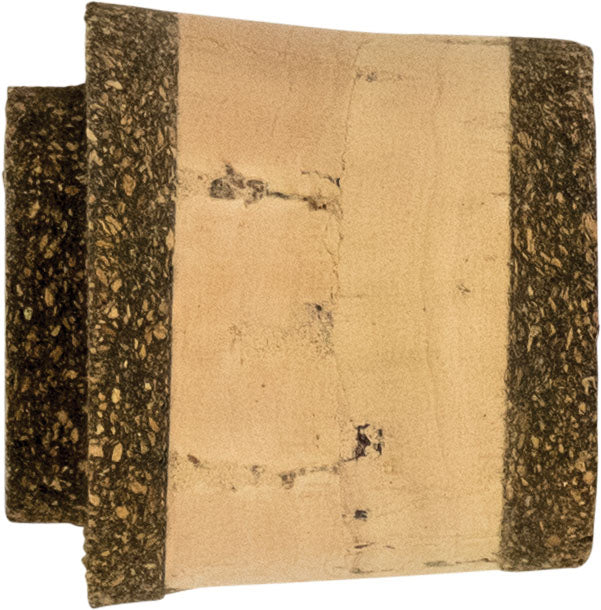

| HEFGC17-1 | 22.225 / 0.875 | 23.368 / 0.920 | 6.3500 / 0.2500 | 19.812 / 0.78 | 23.368 / 0.917 |

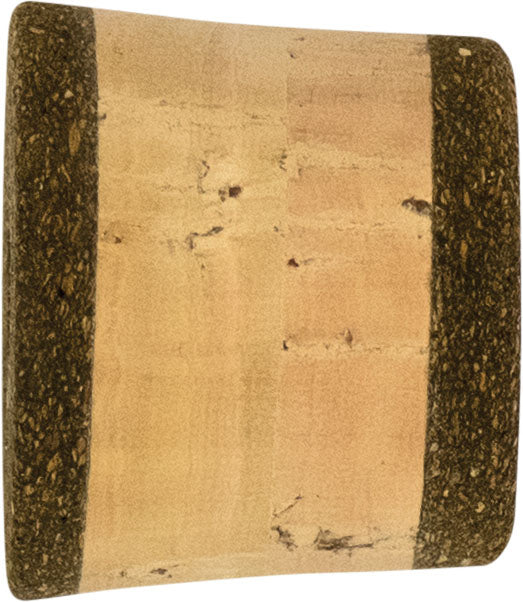

| HEFGC17-2 | 23.287 / 0.917 | 23.368 / 0.920 | 6.3500 / 0.2500 | 19.812 / 0.78 | 23.387 / 0.917 |

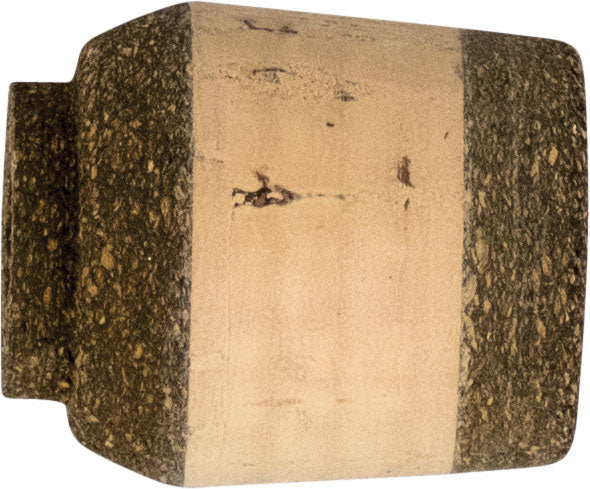

| HEFGSCC16-3 | 22.823 / 0.899 | 22.835 / 0.899 | 6.3500 / 0.2500 | 19.844 / 0.78 | 18.709 / 0.737 |
Super Grade Cork / Dark Burl
| PART # | LENGTH (MM/IN) | OD (MM/IN) | ID (MM/IN) | OD FRONT (MM/IN) | OD REAR (MM/IN) |
|---|---|---|---|---|---|

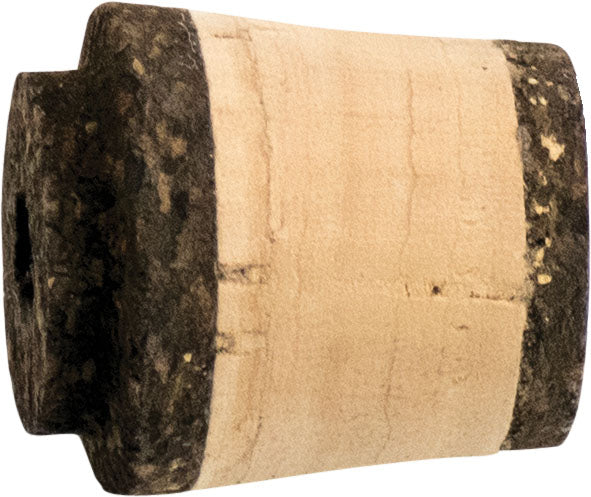

| HEFGCBDB16-1 | 22.225 / 0.875 | 20.828 / 0.820 | 4.7625 / 0.1875 | 16.775 / 0.66 | 20.828 / 0.820 |

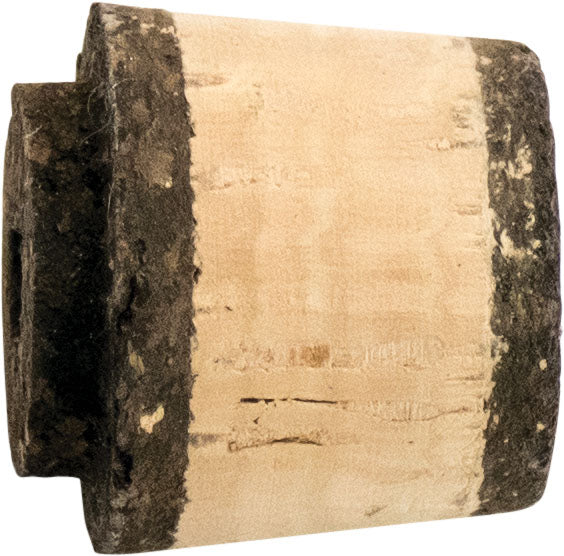

| HEFGCBDB17-1 | 22.225 / 0.875 | 23.368 / 0.920 | 6.3500 / 0.2500 | 19.812 / 0.78 | 23.368 / 0.920 |

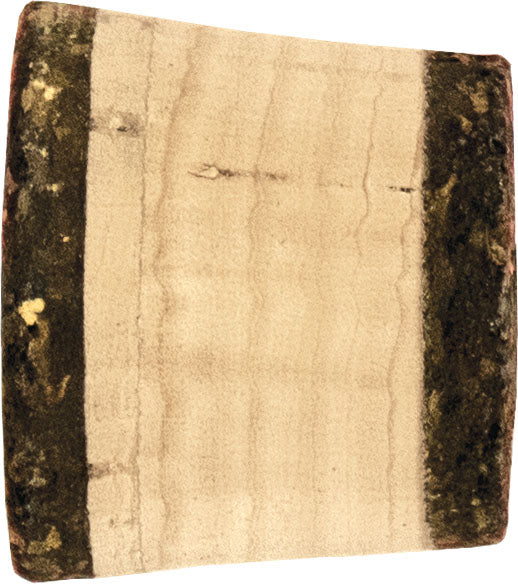

| HEFGCBDB17-2 | 19.050 / 0.750 | 23.287 / 0.917 | 6.3500 / 0.2500 | 20.320 / 0.80 | 23.287 / 0.917 |

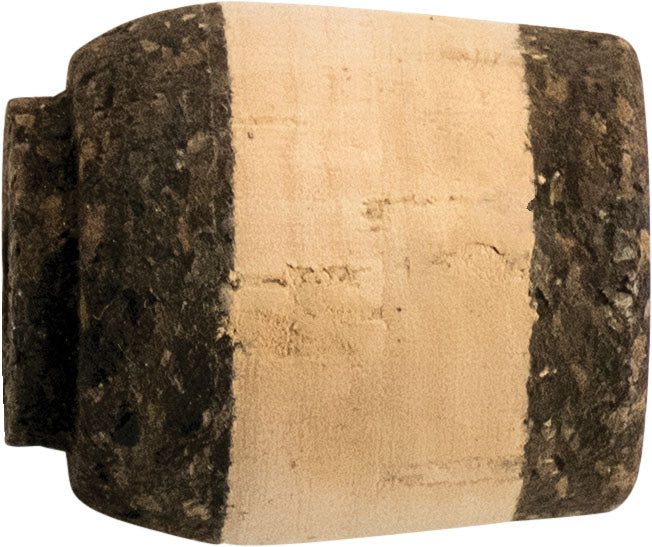

| HEFGSBDB16-3 | 26.035 / 1.025 | 22.823 / 0.899 | 6.3500 / 0.2500 | 19.844 / 0.78 | 18.712 / 0.737 |
