Description

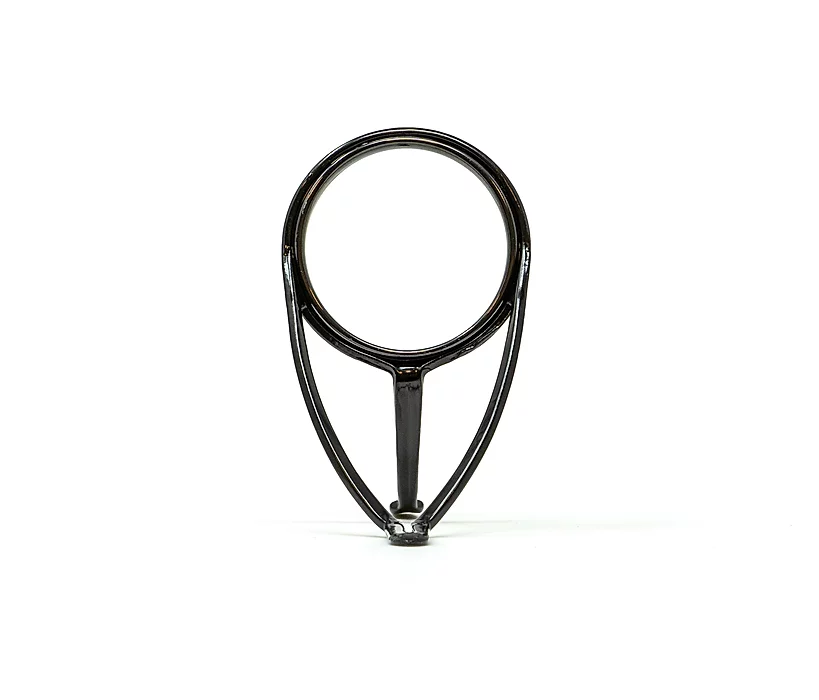

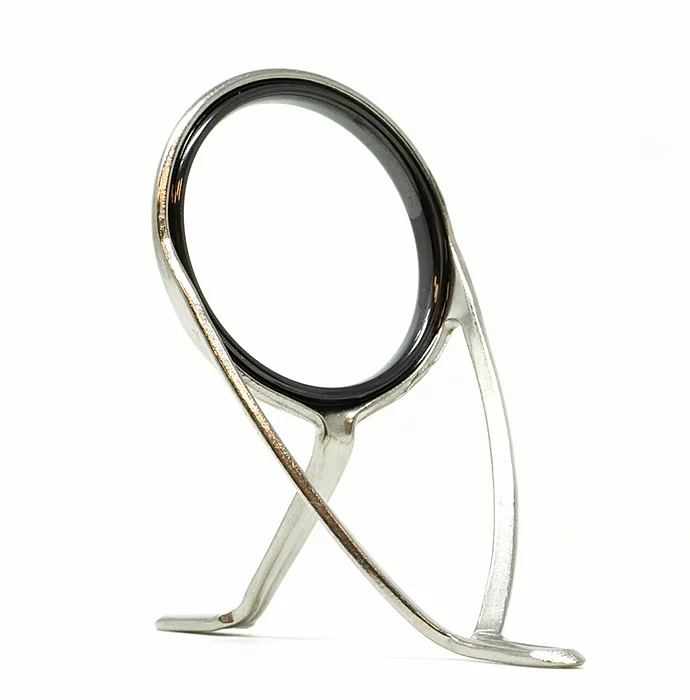

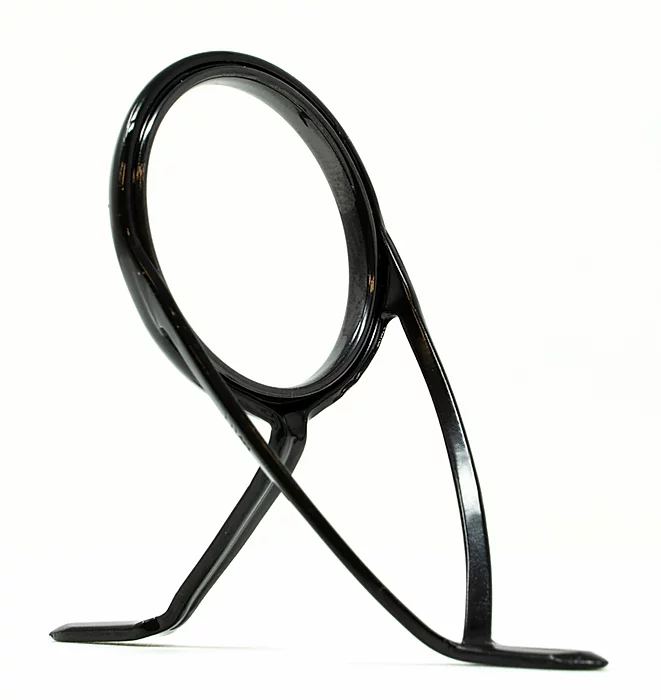

Black Titanium Pentalite Double Foot Guides
- A Titanium Guide Frame Exclusive
- Slim Profile Pentalite Inserts
- Reduced Ring Weights
- Snagless TiForged Frame Design
- Light Weight Flexible Titanium Material
- Offered In Solid Titanium or Black Titanium
| MODEL | HEIGHT A | HEIGHT B | HEIGHT C | WEIGHT | RING ID | FOOT 1 | FOOT 2 | TOTAL LENGTH |
| PIBTDF-6 | 2.85 mm | 7.60 mm | 8.50 mm | 0.24 gm | 4.25 mm | 5.50 mm | 5.00 mm | 20.20 mm |
| PIBTDF-7 | 3.40 mm | 8.10 mm | 9.80 mm | 0.31 gm | 4.90 mm | 5.50 mm | 5.50 mm | 21.80 mm |
| PIBTDF-8 | 4.75 mm | 10.95 mm | 12.40 mm | 0.40 gm | 5.85 mm | 5.50 mm | 5.50 mm | 24.20 mm |
| PIBTDF-10 | 5.45 mm | 13.65 mm | 15.20 mm | 0.64 gm | 7.75 mm | 7.00 mm | 6.50 mm | 26.50 mm |
| PIBTDF-12 | 6.50 mm | 10.20 mm | 23.00 mm | 1.00 gm | 9.15 mm | 10.00 mm | 9.00 mm | 39.00 mm |
| PIBTDF-16 | 4.65 mm | 16.30 mm | 23.00 mm | 1.77 gm | 11.60 mm | 10.00 mm | 9.00 mm | 39.00 mm |
