Description

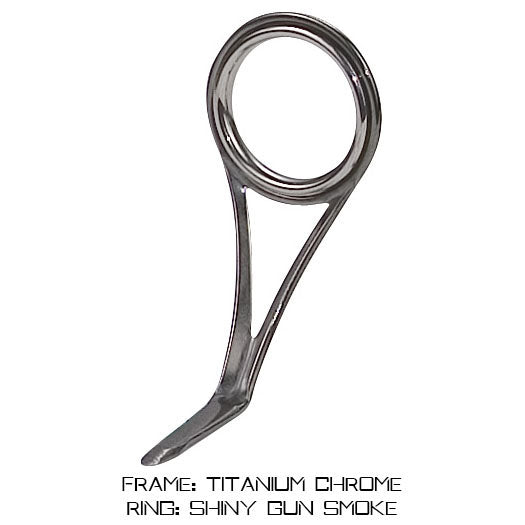

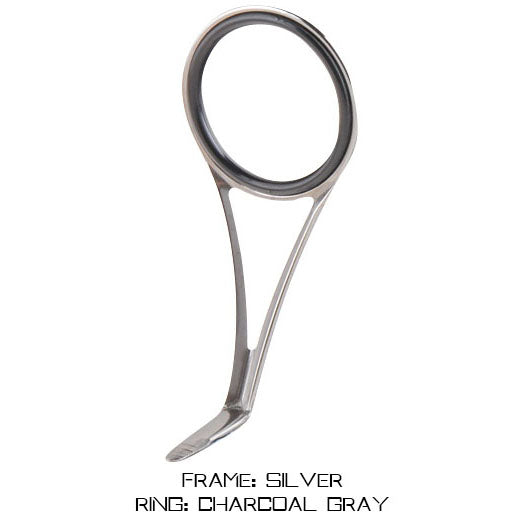

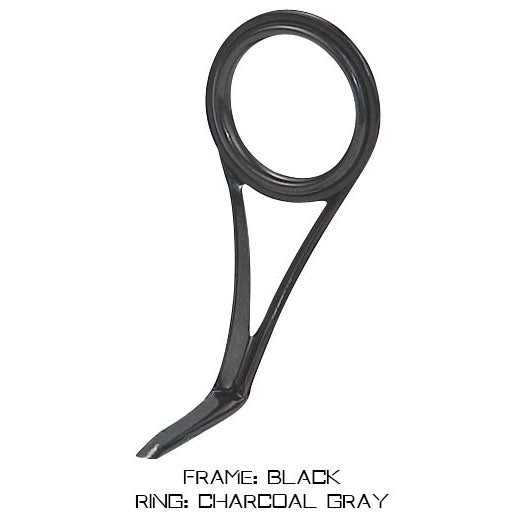

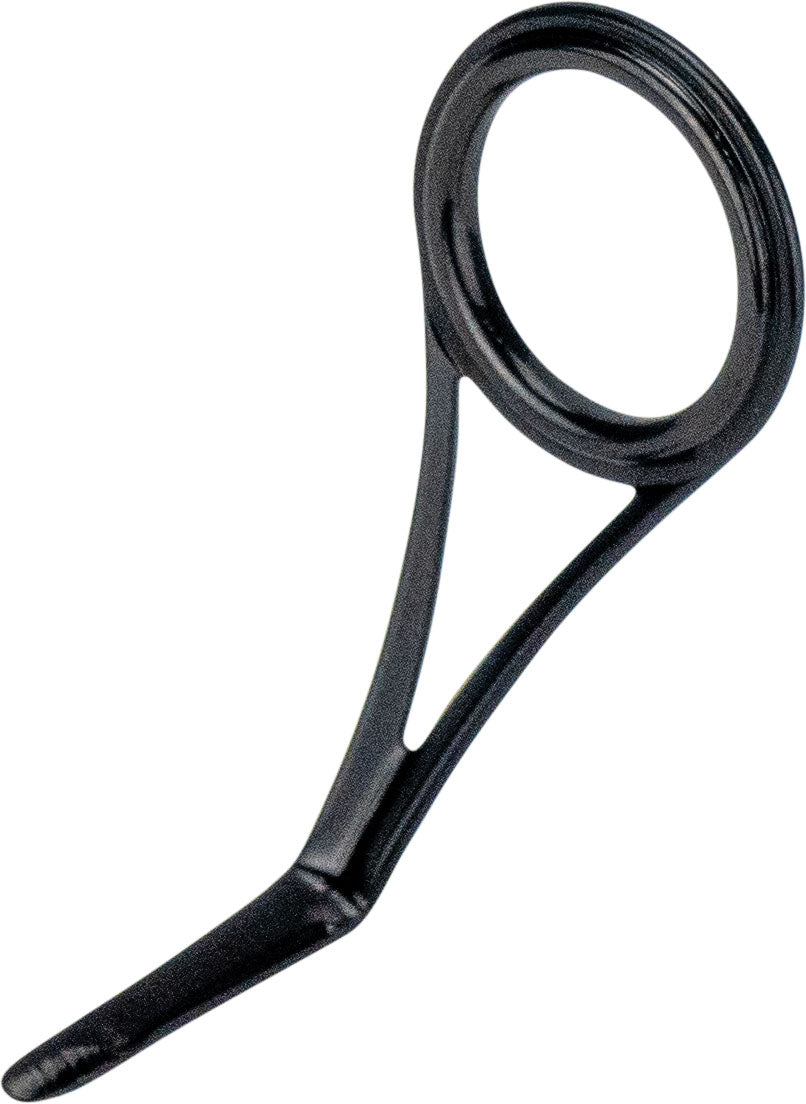

Designed for ultra-light to medium power spinning rods. Angular frame for added strength. Single foot design with a pre-ground foot for easier wrapping. Custom thin ceramic ring for lighter weight. SS316 frame for superb corrosion resistance. Frames are tumbled with custom media for smoother edges. Plating: PVD TiCh. Ring Material: Hard Aluminum Oxide. Frame Material: SS316 Stainless.
Exclusive by ALPS
Pre Ground Foot
Rigid V Designed Frame
Braid Proof
Extreme Corrosion Resistance
Custom Thin Ceramic Rings
Frame: SS316 Stainless Steel
Rings: Zirconium or Hard Aluminum Oxide
Matching Tip Tops (See pg. 215-221):
ALPS PP, PA Tip Top
ForeCast P, P Flanged Tip Top
| Guide Size | RING SIZE (MM OD) | RING SIZE (MM ID) | LENGTH (MM) | LENGTH (IN) | HEIGHT (MM) | HEIGHT (IN) | WEIGHT (GRAINS) | WEIGHT (oz) |
| 6 | 6 | 4.1 | 6.83 | 0.269 | 11.93 | 0.47 | 3.4 | 0.008 |
| 7 | 7 | 4.9 | 9.12 | 0.359 | 14.75 | 0.58 | 4.7 | 0.011 |
| 8 | 8 | 6.1 | 9.56 | 0.376 | 17.66 | 0.696 | 6.3 | 0.014 |
| 10 | 10 | 7.5 | 11.23 | 0.443 | 20.62 | 0.812 | 9.7 | 0.022 |
| 12 | 12 | 9.3 | 11.84 | 0.466 | 27.94 | 1.1 | 14.4 | 0.033 |
| 16 | 16 | 11.8 | 15.87 | 0.625 | 35.6 | 1.4 | 25.6 | 0.059 |
| 20 | 20 | 15.3 | 19.38 | 0.762 | 41.24 | 1.63 | 38.6 | 0.088 |
| 25 | 25 | 19.5 | 17.79 | 0.7 | 51.79 | 2.03 | 56.5 | 0.129 |
| 30 | 30 | 25.6 | 20.51 | 0.808 | 64.76 | 2.54 | 84.6 | 0.193 |
