Description

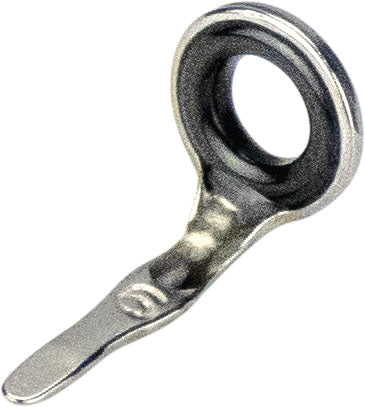

SS316 substrate for enhanced corrosion resistance. Recessed Ring Design frame for a better ring-to-frame bond. Single foot design with a pre-ground foot for easier wrapping. The foot is arrow-shaped to enhance thread-to-foot-to-blank holding capability. Smaller sizes help to reduce finished rod weight. The frame design raises the ring slightly above the blank for easier finishing. Batson & ALPS design effort. Ring Material: Zirconium.
| Guide Size | RING SIZE (MM OD) | RING SIZE (MM ID) | LENGTH (MM) | LENGTH (IN) | HEIGHT (MM) | HEIGHT (IN) | WEIGHT (GRAINS) | WEIGHT (oz) |
| 3 | 3 | 1.9 | 8.65 | 0.341 | 4.18 | 0.165 | 1.4 | 0.003 |
| 4 | 4 | 2.1 | 8.65 | 0.341 | 6.1 | 0.24 | 1.9 | 0.004 |
| 5 | 5 | 3 | 9.17 | 0.361 | 7.4 | 0.291 | 2.7 | 0.006 |
